ANTSY - Autonomous Navigator and Terrain Surveyor Yetti: a ROS 2 Hexapod Robot with MuJoCo Simulation

Yetti? Well, it is not a spider. It's more like an aberration, like a Yetti!

This package can be used for hexapod simulation in ROS2. The mujoco-simulation branch uses MuJoCo as the simulator backend.

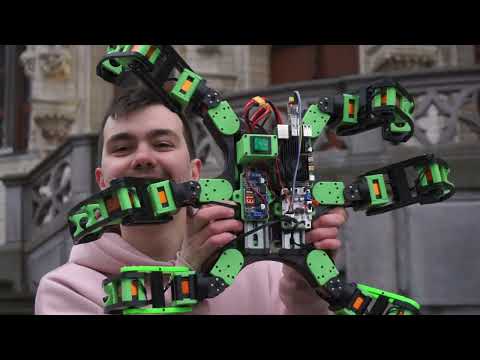

Demo

Instalation

• git clone git@github.com:Laroto/antsy.git
• git submodule update --init --recursive
• docker compose build --pull
• docker compose run --rm antsy
• colcon build
  • (optional) For convenience, we can instead run colcon build --symlink-install to create simlinks. This will allow to edit non-compiled files (eg: Python scripts or parameter files) without having to source the workspace again
• source install/setup.bash

Running

There is more information about each component of this package in the submodules of this reporsitory:

• src/antsy_description/README.md - robot model, description launch files, and their launch arguments
• src/antsy_simulation/README.md - MuJoCo simulator node and simulation launch arguments
• src/antsy_control/README.md - control nodes, gait parameters, body-pose mode, and leg odometry
• src/ds4_launcher/README.md - DS4 launch setup, teleop config, and bridge-node parameters
• src/hiwonder_ros2/README.md - servo writer nodes and serial settings
• src/antsy_kinematics/README.md - kinematics library and example node
• src/antsy_msgs/README.md - message-only package, no runtime parameters

There are more submodules/packages but they are used as libraries and/or dependencies so no need to worry about those ;)

Parent repo scripts

The parent repo does not provide production ROS nodes. It provides helper scripts used for offline smoke testing:

• scripts/smoke_control_pipeline.py
• scripts/smoke_sim_leg_odometry.py
• scripts/smoke_hiwonder_writer.py
• scripts/run_offline_smoke_tests.sh

These scripts use environment variables rather than ROS parameters.

Relevant environment variables:

Variable	Default	Meaning
ANTSY_TEST_ROS_DOMAIN_ID	93	ROS domain used by the offline smoke suite so it stays isolated from other ROS graphs.
ANTSY_TEST_LOG_DIR	/tmp/antsy_smoke_tests	Directory where the smoke scripts store subprocess logs.
ANTSY_SIM_SMOKE_LINEAR_X	0.25	Forward speed used by the headless simulation odometry smoke test.
ANTSY_SIM_SMOKE_WARMUP	2.0	Warmup time, in simulated seconds, before the steady-state leg-odometry window is measured.
ANTSY_SIM_SMOKE_DURATION	10.0	Simulated duration used by the headless simulation odometry smoke test.
ANTSY_SIM_SMOKE_COOLDOWN	2.0	Time, in simulated seconds, spent publishing zero cmd_vel after the motion window so the gait can settle before the final pose comparison.
ANTSY_SIM_SMOKE_MAX_FORWARD_RELATIVE_ERROR	0.01	Maximum allowed relative error between simulator and leg-odometry forward-motion trends over the analysis window.
ANTSY_SIM_SMOKE_MAX_HEADING_ERROR	0.03	Maximum allowed integrated heading-trend mismatch between simulator and leg odom over the analysis window.
ANTSY_SIM_SMOKE_MAX_COOLDOWN_POSITION_ERROR	0.03	Maximum allowed XY pose mismatch between simulator odom and leg odom after the cooldown period.
ANTSY_SIM_SMOKE_MAX_COOLDOWN_HEADING_ERROR	0.03	Maximum allowed yaw mismatch between simulator odom and leg odom after the cooldown period.
ANTSY_SIM_SMOKE_MIN_FORWARD	1.80	Minimum required simulator forward motion during the headless simulation test.
ANTSY_SIM_SMOKE_MAX_LATERAL	0.15	Maximum allowed simulator lateral drift during the headless simulation test.
ANTSY_SIM_SMOKE_MAX_LEG_LATERAL	0.08	Maximum allowed leg-odometry lateral drift during the headless simulation test.
ANTSY_SIM_SMOKE_LEG_ODOM_TRANSLATION_SCALE	1.0	Translation calibration passed into leg_odometry.translation_scale during the steady-state odometry smoke test. Keep this at 1.0 unless you are deliberately testing a calibrated bias correction.
ANTSY_SIM_SMOKE_LEG_ODOM_PROPAGATE	0	If true, enables short leg-odometry dead-reckoning during invalid support windows for this smoke test only.
ANTSY_SIM_SMOKE_LEG_ODOM_MAX_PREDICTION_TIME	0.08	Maximum dead-reckoning time used when ANTSY_SIM_SMOKE_LEG_ODOM_PROPAGATE is enabled.
ANTSY_SIM_SMOKE_WALL_TIMEOUT	40.0	Wall-time timeout for the headless simulation test to advance the requested simulation duration.

Offline smoke tests

Run the real-robot command pipeline checks without a remote controller or real servos:

scripts/run_offline_smoke_tests.sh

The smoke suite runs inside Docker, builds the required packages, and uses an isolated ROS domain by default. Override it with:

ANTSY_TEST_ROS_DOMAIN_ID=94 scripts/run_offline_smoke_tests.sh

The tests check:

• cmd_vel through antsy_description + antsy_control produces changing /actuators commands.
• /leg_odom moves forward under forward cmd_vel, stays within a small lateral drift bound, and resets near the origin after /control/reset.
• Headless MuJoCo simulation runs in open loop with heading hold disabled, warms up for 2 simulated seconds, drives forward for 10 simulated seconds, then publishes zero cmd_vel for 2 simulated seconds before comparing the settled final pose. During the motion window it compares the steady-state forward and heading trends of simulator /odom against controller /leg_odom. In simulation, /leg_odom uses measured /joint_states; without measured joints it falls back to commanded foot poses.
• /control/reset returns the controller output close to the startup actuator command.
• hiwonder_ros2/write_only can run against a pseudo-terminal, receives /actuators, writes serial move packets, sends servo unload on /motors/disable, pauses writes while disabled, and resumes on /motors/enable.

/actuators is not simulator-only. It is the controller output topic. The MuJoCo simulator subscribes to it in simulation, and the Hiwonder writer subscribes to it on the real robot.
