MIDI Fighter Twister configuration API

Read and write the persistent configuration of a DJ TechTools MIDI Fighter Twister — so an agent can set it up from a chat interface instead of clicking through sixteen knobs by hand.

The problem

The Twister is deeply programmable. There are four banks of controls, or eight with alternate firmware. Each knob has its own MIDI CC number and an on and an off color, and it can be a toggle or a tap. And there are more settings beyond that. It's also bidirectional — send values back to it and the knobs move. Another thing that's nice about the controller is that its firmware is open source, so it was really easy to build this API on top of it.

Programming all of this by hand takes a long time. It means going into the MIDI Fighter Utility, clicking a knob, setting its CC value, and setting its on and off color — one by one, for every knob.

Then there's the mapping. A typical system, in Ableton or another DAW, maps a MIDI CC to several different knobs in the program. That means clicking, remembering what each knob was, and then clicking in Ableton or in Chromatik, for example. Each mapping in Chromatik is made manually: click the source knob from the template, the MIDI control, click the destination knob, and then set what the behavior is. Whether it's an on and off state or a toggle state has to be remembered, and then a color scheme has to be worked out and applied to each knob.

All of it has to be remembered and written down, or it's easy to forget how something was done when coming back to it later.

What this changes

Now it's just a chat with an agent, and the agent keeps notes on how things were programmed. For example, with one color scheme for all the knobs, it sets the on and off colors for every knob at once, in one shot. A few sentences describe what a knob should do — "Can we make the bottom-right knob trigger a tap tempo when you press it?" — and it uses Chromatik's MCP server to bind that knob to that thing. It can bind it to multiple things in Chromatik, and because the agent keeps notes on the system for doing the MIDI mapping, it can answer questions later: "Can you explain the bank switch button? Pressing to the right makes it all dark." It can also suggest mappings that fit the audio program; once one is chosen, it creates it in one shot.

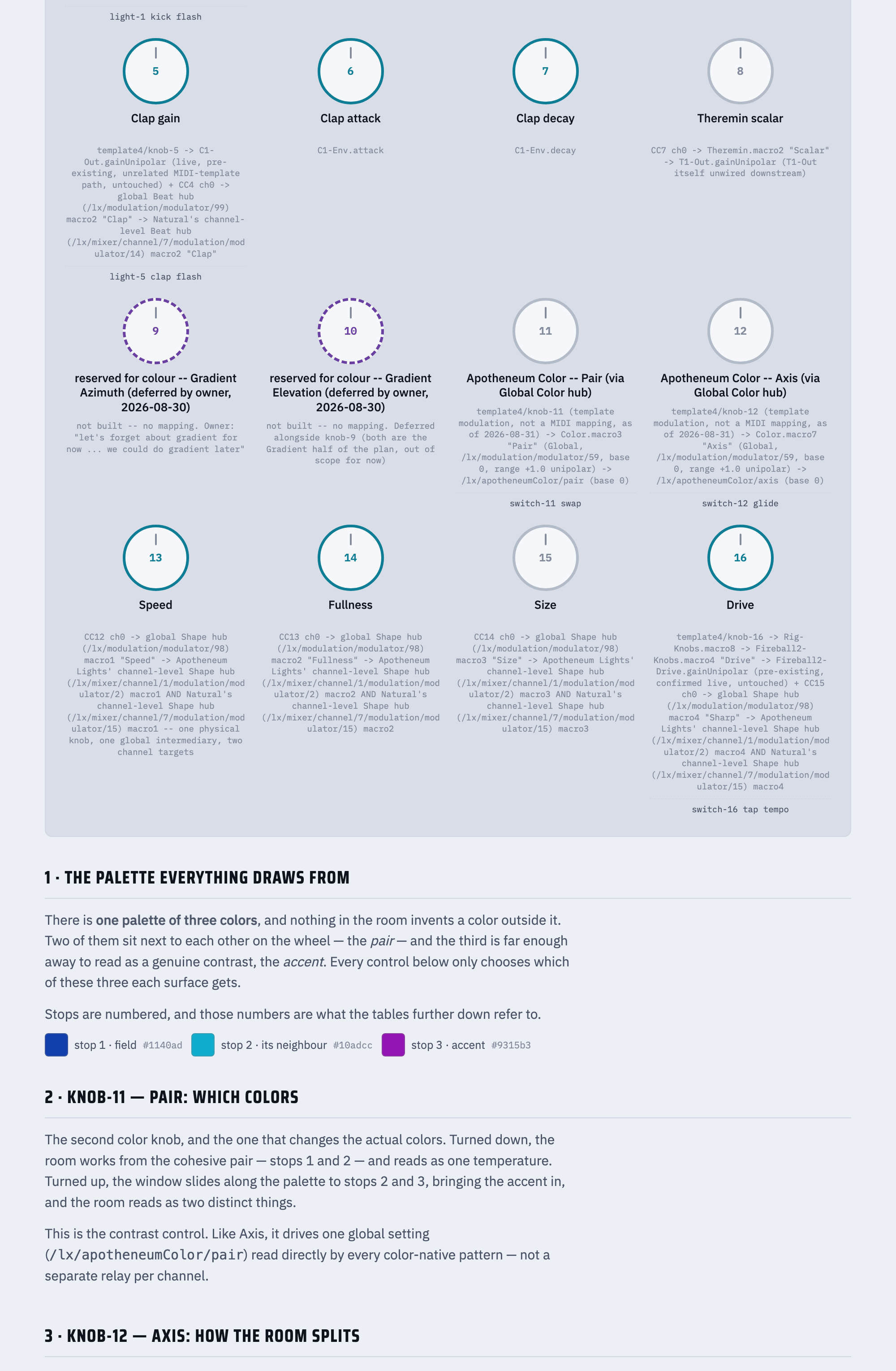

Here's an example of using Claude to design a mapping and create an artifact to review and refer to when doing further programming. It's a nice visual output that can also be printed out as a guide, and it maintains itself.

Examples

Here are a few example prompts that show how this API can be used. They're adapted from real sessions with this tool. The main use case here was Chromatik, through the Chromatik MCP server, but this could be generalized to other tools.

Moving a mapping onto the Twister

An Akai MPD218 was already mapped in another project, and this project had the Twister instead.

Well, let's take a step back. Do you know how all the buttons and knobs were mapped? Because it would be nice now to map a different controller in the same way.

MPD218 (bank A only) — knobs A1-A4 are the "beat modulation intensity" knobs you
remembered (kick/clap gain), A5-A6 do the same for melody. Pads: A9/A10 are
dual-purpose (fire a kick/clap and recall a pattern/swatch), A11/A12 cycle
pattern/palette, A13/A14 live-edit the kick/clap rhythm, A16 fires the Drop.
…
Straight MIDI mapping works fine for this and is simpler. The one thing the
template class gets you that ad-hoc mapping doesn't: bidirectional feedback — it
sends CC/note back to the device so its LED rings track the current parameter
value. For a beat-intensity knob that's mostly hands-on anyway, that's a
nice-to-have, not essential.
…
Done. The knob side is fully wired. Try turning the top-left 6 encoders on the
Twister — they should move KickGain1/ClapGain1/KickGain2/ClapGain2/MelodyGain1/
MelodyGain2 exactly like the MPD218's A1-A6 knobs did.

The simple one was enough. By hand that would have been an evening of cross-referencing CC numbers.

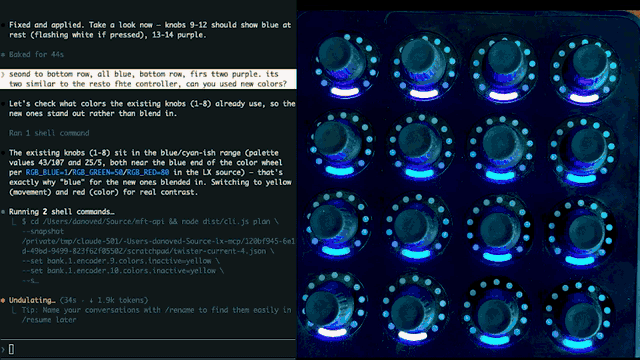

New colors for the new knobs

This is the exchange in the video at the top.

Second-to-bottom row all blue, bottom row first two purple. It's too similar to the rest of the controller, can you use new colors?

Let's check what colors the existing knobs (1-8) already use, so the new ones
stand out rather than blend in.

The existing knobs (1-8) sit in the blue/cyan-ish range … — that's exactly why
"blue" for the new ones blended in. Switching to yellow (movement) and red
(color) for real contrast.

Applied — knobs 9-12 should now be yellow, 13-14 red, both clearly distinct from
the existing blue-family knobs. Take a look.

Three more: tap tempo, a button that won't pulse, and a dark bank

Tap tempo on the bottom-right button

Can we make the bottom-right button of the controller tap tempo?

Switch-16 is confirmed free in all three scopes. Wiring it to the tempo tap.

Now verifying encoder 16's switch is still momentary on the hardware — a toggle
would only fire on alternate presses, which would break tap.

Done — bottom-right button (encoder 16) now taps tempo:

  Switch-16 ──trigger──> /lx/tempo/tap

One thing you need to know before you rely on it: the tempo clockSource is
currently MIDI, not Int — it's at 133.2 bpm following an external MIDI clock.
Under MIDI clock, LX's bpm is read-only, so tap presses will be swallowed and
won't move the tempo. The mapping is correct and will work the moment you switch
clockSource to Int.

A button that should pulse but doesn't

The clap trigger's light had just been moved to a new knob, and the knob stayed one color.

It's not pulsing. It's just light blue. It should be pulsing to green too.

This is a Twister hardware LED-color config issue, not an LX wiring issue — the
switch's color scheme (what it shows idle vs. active) is separate persistent
controller state.

Encoder 1/2 (row 1, "green when active / purple when inactive") use
colors.active=43 / colors.inactive=107. Encoder 5 currently has a completely
different palette (active=25, inactive=5), which is why it just looks static
light blue. Setting it to match row 1's convention.

Both changes applied and verified. Encoder 5's switch should now show
light-blue-to-green pulsing on each clap, matching row 1's scheme.

Why is bank 2 dark?

Can you explain the bank switch button? Pressing to the right makes it all dark. The second bank is all black. How can it show colors? How do you get to bank 2 on the MIDI Fighter Twister?

Side-button actions are read-only in the tool, but exporting will tell us
exactly what your buttons are set to do.

  side button 1  →  ccToggle
  side button 2  →  shiftPage2Toggle
  side button 3  →  ccToggle
  side button 4  →  ccToggle
  side button 5  →  shiftPage1Toggle
  side button 6  →  ccToggle

None of the six side buttons is assigned a bank action. So pressing right isn't
failing to switch banks — it was never going to. Four of them just emit a CC, and
two toggle shift pages, which are a different mechanism from banks entirely.
What you're seeing when the grid goes dark is almost certainly a shift page with
nothing configured on it, not bank 2.

Bank 2 isn't dark — you're not reaching it. Your device's encoders for bank 2
are configured and colored: they send CC 16–19 on channel 1, which is exactly
what knob-17…knob-20 in the template listen to.
…
Reassign a side button to a bank action. This has to be done in DJ TechTools'
MIDI Fighter Utility.

Underneath, the Twister side runs through the CLI documented below. Nothing is hidden — the same work by hand looks like this:

mft-config export --out twister-config.json

mft-config plan \
  --snapshot twister-config.json \
  --set bank.1.encoder.9.colors.inactive=yellow \
  --set bank.1.encoder.10.colors.inactive=yellow \
  --set bank.1.encoder.11.colors.inactive=yellow \
  --set bank.1.encoder.12.colors.inactive=yellow \
  --set bank.1.encoder.13.colors.inactive=red \
  --set bank.1.encoder.14.colors.inactive=red \
  --out patch-plan.json

mft-config apply --plan patch-plan.json --yes   # disabled: see #14

---

What the controller can do

The MIDI Fighter Twister is a banked USB MIDI controller with:

• 16 endless rotary encoders arranged in a 4×4 grid
• a push switch under every encoder
• RGB illumination and an LED position ring for every encoder
• six side buttons for MIDI, shift-page, and bank actions
• four configuration banks, with optional eight-bank firmware support
• separate MIDI mappings and visual behavior for every encoder in every bank

Turning an encoder can send notes, absolute or relative control changes, switch velocity, or mouse-emulation messages. Pressing it can act as a momentary or toggle CC/note button, reset its value, enable fine adjustment, or temporarily select a shifted encoder layer. The colors, indicator style, detent, response, MIDI channel, and MIDI number are independently configurable.

What this tool does

• list discovers connected Twisters without changing them.
• export reads device identity, global settings, and all 64 or 128 banked encoder records into JSON.
• plan creates an offline, content-addressed description of proposed changes. It does not open MIDI ports.
• apply writes an eligible plan, saves a backup first, and reads the entire controller back after every changed target to verify the result.

Only apply can write configuration. System commands, reset commands, and bootloader commands are always blocked. Live writes currently require firmware 2026-07-02 and a strong command-0x05 device identity.

apply is disabled in the current release while the write-path defects in #14 are open. Still outstanding: .mft-state — the backups and the single-use plan journal — resolves against the current working directory, so applying from a different directory consults a different journal; and a plan whose apply died mid-write can be replayed, because only a completed plan is recorded as consumed. The first became easy to hit once the CLI could be installed and run from anywhere.

list, export, and plan are unaffected and are the whole read path. To write settings meanwhile, use the vendor MIDI Fighter Utility.

Install

Requires Node.js 20 or newer. Prebuilt MIDI binaries ship for macOS, Windows, and Linux, so no compiler is needed on common platforms. Nothing below needs a clone, a build, or a local toolchain.

Claude Code

Two commands, and the agent can talk to the controller:

/plugin marketplace add oveddan/mft-api
/plugin install mft-configurator@mft-api

That installs the mft-configurator skill. It reaches the CLI through npx -y mft-config, so there is no second install step — though a global install (below) makes every command noticeably faster to start.

Codex

Codex has no marketplace, so the skill is fetched directly. This copies only the skill directory:

mkdir -p ~/.codex/skills/mft-configurator && curl -fsSL https://github.com/oveddan/mft-api/archive/refs/heads/main.tar.gz | tar -xz --strip-components=4 -C ~/.codex/skills/mft-configurator mft-api-main/.claude/skills/mft-configurator

The CLI on its own

npm install -g mft-config

Or run it without installing anything:

npx -y mft-config list

Every example below uses mft-config. The old mft-export name still works as a deprecated alias and will be removed in a future release.

Upgrading, removing, and the details of both agent installs are in docs/agent-skill.md.

Run every command from the same directory. mft-config writes its backups and its single-use plan journal to .mft-state/ relative to the current working directory, so switching directories between plan and apply consults a different journal. Pick a directory and stay in it.

Read the controller

List connected Twisters:

mft-config list

Export the only connected device:

mft-config export --out twister-config.json

If more than one Twister is connected, use the index shown by list:

mft-config export --device 1 --out twister-config.json

The JSON includes the firmware and unit identity, detected bank count, all decoded global and encoder fields, the original raw tag values, and warnings for unknown or incomplete firmware responses.

Addressing knobs

Each bank contains encoders 1 through 16, numbered left-to-right and top-to-bottom:

 1   2   3   4
 5   6   7   8
 9  10  11  12
13  14  15  16

A setting path has this form:

bank.<bank>.encoder.<encoder>.<setting>

For example, bank.1.encoder.2.switch.action.code is the push-switch action for the second knob in the top row of bank 1. Bank and encoder numbers are one-based.

Settings for every encoder

Every physical knob has a rotary encoder and a push switch. Each bank gives that pair an independent configuration.

Setting path	Values	What it controls
encoder.midiChannel	1..16	MIDI channel used when turning the knob
encoder.shiftedMidiChannel	1..16	MIDI channel used while the knob's shift layer is active
encoder.midiNumber	0..127	note or CC number sent by the rotary encoder
encoder.type.code	0..5	rotary output type; see below
movement.code	0..2	direct, responsive, or velocity-sensitive response
switch.midiChannel	1..16	MIDI channel used by the push switch
switch.midiNumber	0..127	note or CC number sent by the push switch
switch.action.code	0..8	momentary, toggle, reset, fine, or shift behavior
colors.active	name or 0..127	RGB color while the switch is active
colors.inactive	name or 0..127	RGB color while the switch is inactive
detent.enabled	true / false	enables the encoder's detent behavior
detent.color	name or 0..127	RGB color used at the detent
indicator.code	0..3	LED-ring display style
superKnobEnabled	true / false	enables the global secondary super-knob range

Rotary output types

Code	Exported name	Behavior
0	note	sends note messages
1	cc	sends absolute control-change values
2	relativeEncoder	sends relative CC values centered around 64
3	switchVelocityControl	sends CC values and also adjusts push-switch velocity
4	mouseDrag	relative encoder mode interpreted as mouse drag by compatible software
5	mouseScroll	relative encoder mode interpreted as mouse scroll by compatible software

Movement modes

Code	Exported name	Behavior
0	direct	normal one-to-one encoder response
1	responsive	firmware emulation/responsive response
2	velocitySensitive	faster turns produce larger changes

Push-switch actions

Code	Exported name	Behavior
0	ccHold	sends CC 127 while held and CC 0 when released
1	ccToggle	alternates CC 127 and 0 on each press
2	noteHold	sends note-on while held and note-off when released
3	noteToggle	alternates note-on and note-off on each press
4	resetToZero	resets the encoder to zero, or its center when detent is enabled
5	resetToMaximum	resets the encoder to 127, or its center when detent is enabled
6	fineAdjust	makes turning finer while the switch is held
7	shiftHold	uses the shifted encoder layer while held
8	shiftToggle	toggles the shifted encoder layer on and off

Indicator styles

Code	Exported name
0	dot
1	bar
2	blendedBar
3	spreadBar

Side buttons

The six physical side buttons share the global MIDI channel. They can be banked or unbanked, and the export identifies each button's action:

Codes	Actions
0..3	ccHold, ccToggle, noteHold, noteToggle
4..7	shiftPage1Hold, shiftPage2Hold, shiftPage1Toggle, shiftPage2Toggle
8..10	bankUp, bankDown, bankSelect
11..18	direct selection of bank1 through bank8
19	cycleBank

global.sideButtonsBanked can currently be changed by the planner. Individual side-button actions are exported but are intentionally read-only until their write path is added and tested.

Global settings

Setting path	Values	Meaning
global.midiChannel	1..16	system and side-button MIDI channel
global.sideButtonsBanked	true / false	give side buttons bank-specific MIDI numbers
global.superKnob.start	0..127	start of the secondary super-knob range
global.superKnob.end	0..127	end of the secondary super-knob range
global.brightness.rgb	0..127	RGB illumination brightness
global.brightness.indicator	0..127	LED-ring brightness
global.colorMap.code	0 / 1	classic or MF64 color palette
global.animationChannels.encoder	1..16	MIDI feedback channel for encoder-ring animation
global.animationChannels.switch	1..16	MIDI feedback channel for switch-color animation
global.sleep.timeoutIndex	0..7	timeout: 0, 1, 3, 5, 10, 20, 30, or 60 minutes
global.sleep.animation.code	0 / 1	lights off or rainbow-wave sleep animation
global.bankAnimationsEnabled	true / false	enables bank-change animations

The export also reports all six side-button actions and preserves every raw global tag, including fields that are not yet writable.

Colors

Colors can be supplied as palette indices from 0 through 127. The planner also accepts these names for the palette recorded in the snapshot:

• Classic: off, black, blue, green, yellow, red, magenta, purple, white
• MF64: off, black, white, red, orange, yellow, green, teal, blue, purple, magenta, pink

Do not change global.colorMap.code and use named colors in the same plan: color names are resolved using the palette in the input snapshot. Export a fresh snapshot after changing palettes, then plan the color changes.

Change configuration

Changes use a deliberate three-step workflow: export a fresh snapshot, create and inspect an offline plan, then explicitly apply it. Plans expire after 15 minutes and are bound to the snapshot hash, firmware version, and device ID.

The third step is disabled in this release — see the note under What this tool does. The recipes below still work through plan, which is offline and never opens a MIDI port; only the final apply refuses.

Make the top row green when active and purple when inactive

mft-config export --out twister-config.json

mft-config plan \
  --snapshot twister-config.json \
  --set bank.1.encoder.1.colors.active=green \
  --set bank.1.encoder.1.colors.inactive=purple \
  --set bank.1.encoder.2.colors.active=green \
  --set bank.1.encoder.2.colors.inactive=purple \
  --set bank.1.encoder.3.colors.active=green \
  --set bank.1.encoder.3.colors.inactive=purple \
  --set bank.1.encoder.4.colors.active=green \
  --set bank.1.encoder.4.colors.inactive=purple \
  --out patch-plan.json

mft-config apply --plan patch-plan.json --yes   # disabled: see #14

Make the first two push switches toggle on and off

Code 1 is ccToggle:

mft-config export --out twister-config.json

mft-config plan \
  --snapshot twister-config.json \
  --set bank.1.encoder.1.switch.action.code=1 \
  --set bank.1.encoder.2.switch.action.code=1 \
  --out patch-plan.json

mft-config apply --plan patch-plan.json --yes   # disabled: see #14

Change a knob's rotary and push MIDI mappings

This makes bank 2, encoder 5 send CC 20 on channel 3 when turned, and a momentary CC 40 on channel 4 when pressed:

mft-config export --out twister-config.json

mft-config plan \
  --snapshot twister-config.json \
  --set bank.2.encoder.5.encoder.type.code=1 \
  --set bank.2.encoder.5.encoder.midiChannel=3 \
  --set bank.2.encoder.5.encoder.midiNumber=20 \
  --set bank.2.encoder.5.switch.action.code=0 \
  --set bank.2.encoder.5.switch.midiChannel=4 \
  --set bank.2.encoder.5.switch.midiNumber=40 \
  --out patch-plan.json

mft-config apply --plan patch-plan.json --yes   # disabled: see #14

Set a velocity-sensitive spread indicator with a red detent

mft-config export --out twister-config.json

mft-config plan \
  --snapshot twister-config.json \
  --set bank.3.encoder.9.movement.code=2 \
  --set bank.3.encoder.9.indicator.code=3 \
  --set bank.3.encoder.9.detent.enabled=true \
  --set bank.3.encoder.9.detent.color=red \
  --out patch-plan.json

mft-config apply --plan patch-plan.json --yes   # disabled: see #14

Change global brightness and sleep behavior

mft-config export --out twister-config.json

mft-config plan \
  --snapshot twister-config.json \
  --set global.brightness.rgb=96 \
  --set global.brightness.indicator=80 \
  --set global.sleep.timeoutIndex=4 \
  --set global.sleep.animation.code=0 \
  --out patch-plan.json

mft-config apply --plan patch-plan.json --yes   # disabled: see #14

Timeout index 4 means 10 minutes; sleep animation code 0 turns the lights off.

Write safety

Before sending any configuration frame, apply:

1. validates the plan hash and expiry;
2. discovers the controller again and checks its identity and firmware;
3. takes a fresh complete snapshot and rejects stale expected values;
4. saves a timestamped JSON backup under .mft-state/backups/;
5. writes targets sequentially without automatic retries;
6. reads the full configuration after every target and compares it with the expected state; and
7. records pending, verified, failed, or unknown outcomes in an append-only journal.

Completed plans are single-use.

Write to a controller from one process at a time. Nothing enforces this — a lock would bring its own failure modes for what is an edge case on a single-user desk device.

Do not rely on the stale-value check to catch an overlap. Every write carries the whole record, rebuilt from the snapshot that writer read, so if two applies both export before either writes, the second one reverts the first's changes — and because each verifies against its own expectation, both report success and nothing records that a change was lost. Close the vendor MIDI Fighter Utility before writing from here, too.

See docs/write-safety.md for protocol-level details and remaining limitations.

Protocol coverage

The protocol implementation is based on the official DJ TechTools MIDI Fighter Twister firmware.

The exporter uses Universal MIDI Identity for discovery, command 0x05 for the 2026 device ID, command 0x02 for globals, and command 0x04/subcommand 0x01 for encoder bulk pulls. It detects four versus eight banks with a non-mutating encoder-tag probe and then reads all 64 or 128 encoder records sequentially.

Current limitations

• Command 0x05 sends unencoded production-signature bytes. If a byte has its high bit set, the response is not valid MIDI SysEx. On macOS the exporter attempts to recover the identifier from the USB descriptor serial.
• Saved four-bank sequencer slots are not exposed by a firmware SysEx pull and cannot be exported.
• Runtime LED state, the current bank, and current encoder values are not persistent configuration and are not included.
• Individual side-button actions are read-only in the current planner.
• Restore is not exposed as a command yet. Backups are retained under .mft-state/backups/ for a future confirmed restore workflow.

Develop

Working on the tool itself, rather than using it:

git clone https://github.com/oveddan/mft-api.git
cd mft-api
pnpm install
pnpm run check

pnpm run build compiles to dist/, and node dist/cli.js is then equivalent to the installed mft-config command. pnpm pack produces the publishable tarball and runs the full check first.

MFT_UNSAFE_APPLY=1 lifts the apply block so the write path can be exercised against real hardware while #14 is open. It is for developing this tool, not for getting work done — the defects it steps around are real, and it is deliberately absent from the agent skill.

On Linux you need the ALSA development package required by RtMidi if you are building the native dependency from source rather than using its prebuilds.

Releasing

Publishing is manual. Bump the version in package.json, merge it, then run the Release workflow from the Actions tab. Nothing reaches npm without someone choosing to send it.

The workflow refuses a version that is already published, so a forgotten bump fails immediately instead of part-way through. prepack runs the full check before anything uploads, and the released commit is tagged v<version> only after the publish succeeds. Authentication is npm trusted publishing, so there is no token stored in the repository — it has to be enabled once on npmjs.com, as .github/workflows/release.yml describes.

License

This project is licensed under the MIT License. See the LICENSE file for the full text.
