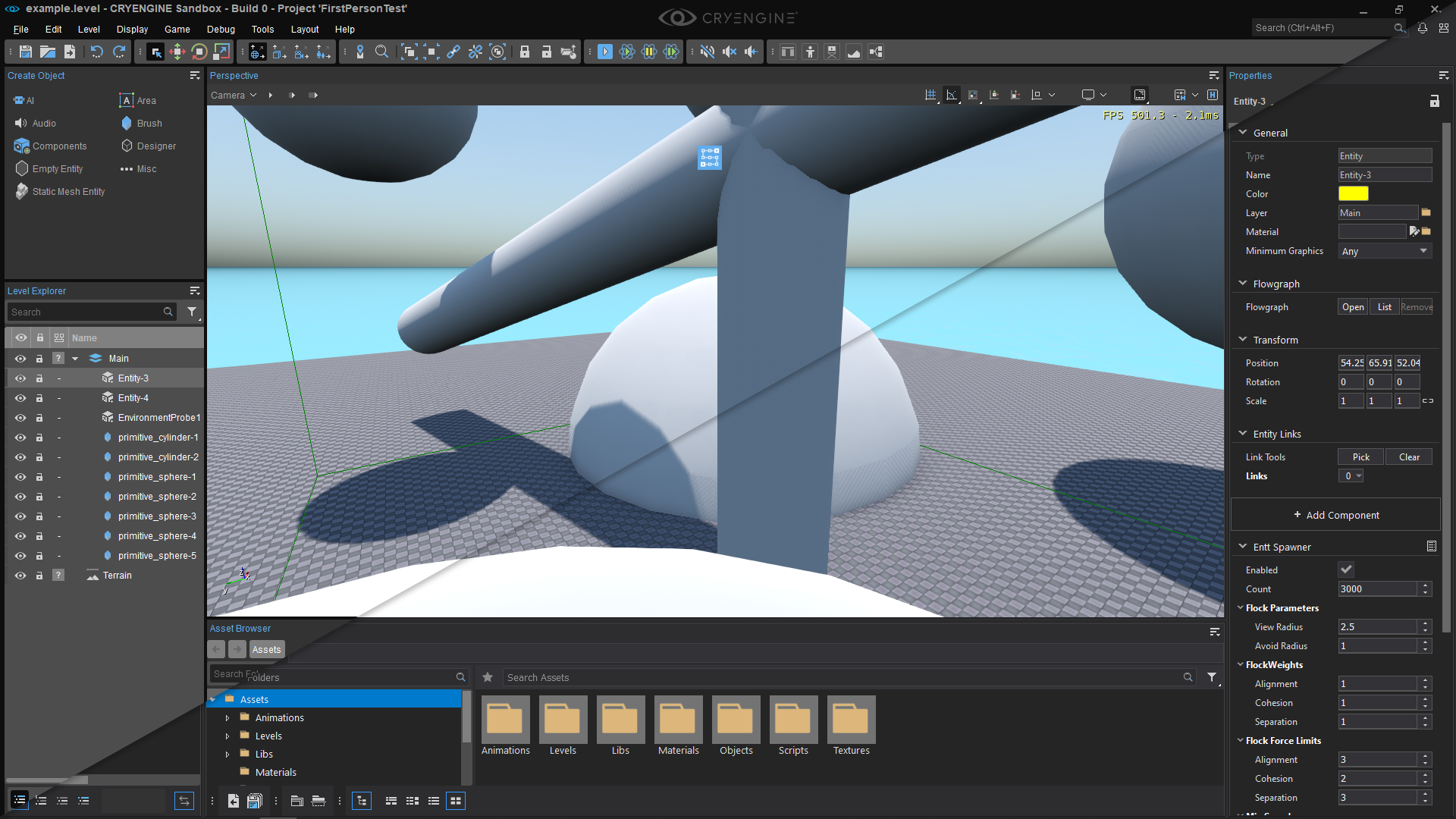

A CryEngine Sandbox plugin that allows to completely change the visual appearance of the editor, be it the stylesheet or icons.

To use this plugin, place the StyleChanger.dll into:

{Your Engine Folder}/bin/win_x64/EditorPlugins

From then on you can change the visual appearance of the editor via the Style entry inside the preferences menu.

Style

---

Allows loading of a custom stylesheet via the stylesheet option. The loaded stylesheet is refreshed via a filewatcher so changes are instantly updated.

The Stylesheet needs to be a valid .qss file. See the default Sandbox stylesheet.qss for reference.

Icons

---

Custom icons can be loaded via one or more Icon Packs.

Icons need to be standard multi resolution .ico files. Specifcation for this can be found in the CryEngine Documentation.

The Default icons can be found here.

Icon Pack:

An Icon Pack is defined via a .crysip file, which is a simple json file used to load the actual icon resources.

It is structured like this:

{
	"isIconFolder" : false,
	"resources" : [
		{
			"prefix" : "/myIcons",
			"file"	 : "./myIcons.rcc"
		}
	]
}

The seperate parameters do the following:

• isIconFolder

  Signifies if icons are stored as plain files relative to the .crysip file. The folder structure needs to match the aliases used inside the Editors .qrc files, not the filenames.

• resources

  A list of descriptors for binary .rcc files that can be compiled from a .qrc file with the qt resource compiler.

  Otherwise the icon path used in code won't match up with the correct file.

  • prefix

    The prefix used inside the qresource definition of the .qrc file. If this does not match the pack won't load properly. See example for details.

  • file

    The relative path to a .rcc file.

Resource files:

Binary resource files (.rcc) can be generated from a .qrc QT resource file. This file contains aliases that map to actual icon resources. This gets then compiled to a binary via the QT resource compiler with a simple command:

rcc -binary myIcons.qrc -o myIcons.rcc

The aliases used need to match the ones used in the default Editor .qrc files to properly override the desired icons.

An example .qrc could look like this:

<RCC>
	<qresource prefix="/myIcons">
		<file alias="General/Folder.ico">General/Folder.ico</file>
		<file alias="General/Folder_Open.ico">General/Folder.ico</file>
		<file alias="General/History_Redo.ico">General/History_Redo.ico</file>
		<file alias="General/History_Undo.ico">General/History_Undo.ico</file>
	</qresource>
</RCC>

The specified icon files are relative to the .qrc location.

---

Converting Images

A simple powershell script to convert PNGs to icons with ImageMagick can look like this:

$icons = Get-ChildItem -Filter "*.png" -Recurse -File
foreach($icon in $icons){
$iconPath = Join-Path $icon.DirectoryName $icon.BaseName

$png = $iconPath + ".png"
$ico = $iconPath + ".ico"

magick.exe convert -background transparent $png -define icon:auto-resize=16,24,32,48,64,72,96,128,256 $ico
}
