Allow missing tag level #147
Description
Activity

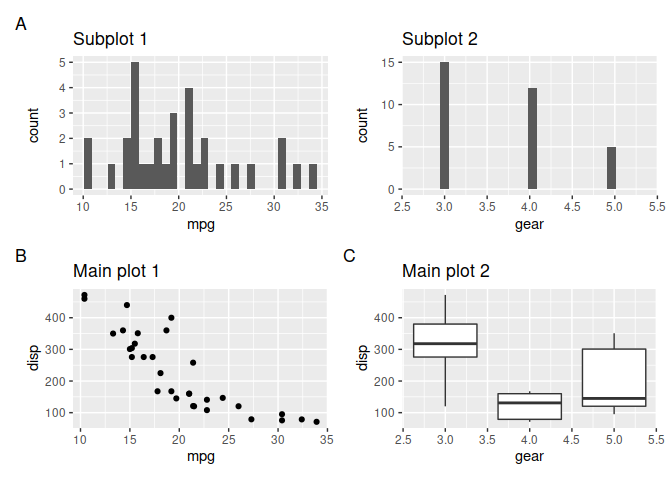

@thomasp85 this fix fails in the special case where the user arranges the plots using the
+operator for the first plot:library(tidyverse) library(patchwork) p1 <- ggplot(mtcars) + geom_point(aes(mpg, disp)) + ggtitle("Main plot 1") p2 <- ggplot(mtcars) + geom_boxplot(aes(gear, disp, group = gear)) + ggtitle("Main plot 2") h1 <- ggplot(mtcars) + geom_histogram(aes(mpg)) + plot_layout(tag_level = 'new') + ggtitle("Subplot 1") h2 <- ggplot(mtcars) + geom_histogram(aes(gear)) + scale_x_continuous(limits = c(2.5, 5.5), expand = c(0, 0)) + ggtitle("Subplot 2") + plot_layout(tag_level = 'new') h1 + h2 + p1 + p2 + plot_annotation(tag_levels = c('A')) #> `stat_bin()` using `bins = 30`. Pick better value with `binwidth`. #> `stat_bin()` using `bins = 30`. Pick better value with `binwidth`. #> Warning: Removed 2 rows containing missing values (geom_bar).
Created on 2021-03-03 by the reprex package (v1.0.0)

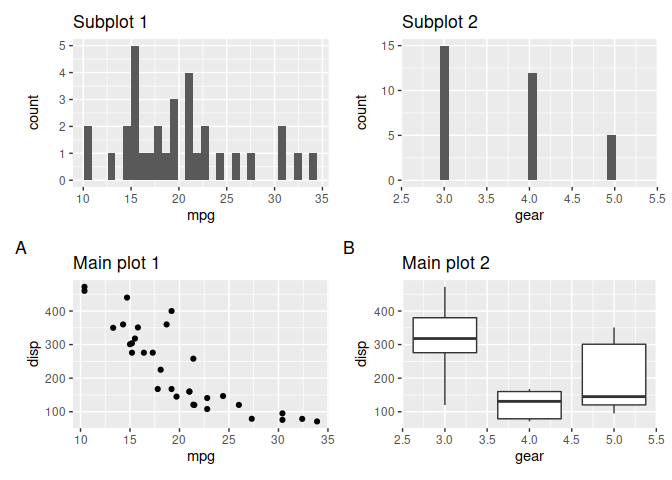

A bit of a hack is the following solution using the text-based
layoutfeature:library(tidyverse) library(patchwork) p1 <- ggplot(mtcars) + geom_point(aes(mpg, disp)) + ggtitle("Main plot 1") p2 <- ggplot(mtcars) + geom_boxplot(aes(gear, disp, group = gear)) + ggtitle("Main plot 2") h1 <- ggplot(mtcars) + geom_histogram(aes(mpg)) + plot_layout(tag_level = 'new') + ggtitle("Subplot 1") h2 <- ggplot(mtcars) + geom_histogram(aes(gear)) + scale_x_continuous(limits = c(2.5, 5.5), expand = c(0, 0)) + ggtitle("Subplot 2") + plot_layout(tag_level = 'new') layout = " CD AB " p1 + p2 + h1 + h2 + plot_annotation(tag_levels = c('A')) + plot_layout(design = layout) #> `stat_bin()` using `bins = 30`. Pick better value with `binwidth`. #> `stat_bin()` using `bins = 30`. Pick better value with `binwidth`. #> Warning: Removed 2 rows containing missing values (geom_bar).
Created on 2021-03-03 by the reprex package (v1.0.0)
Reacted by Stefano Mangiola@thomasp85 I landed here from Google, just adding the syntax that took me a while to figure out:
plot_annotation(tag_levels = list(c("A", "B", "C", "D", "E")))This, for example, deletes the F if it were there
Reacted by Akhil Kumar, Tom Spargo, jadenecke, Charlotte Soneson and emilytrytten@thomasp85 I landed here from Google, just adding the syntax that took me a while to figure out:
plot_annotation(tag_levels = list(c("A", "B", "C", "D", "E")))This, for example, deletes the F if it were there
Good hack, Thanks a lot!
For meignore_tag = Twasn't working as intended, so, used this hack to modify my annotation to exclude the insets-plot_annotation(tag_levels = list(c("A", "", "B", "", "C", "", "D", "", "E", "", "F", "", "G", "H")))
Reacted by Robert M Flight, Derek Chiu and jadeneckeComing late to this discussion, but I ran into kendonB's issue while creating a paneled figure where panels A and B had insets. My initial code:
`panelA <- figA + inset_element(figA_inset, ignore_tag=T)
panelB <- figB + inset_element(figB_inset, ignore_tag=T)panelA + panelB + panelC + panelD +
plot_annotation(tag_levels = 'A')`resulted in no annotations on panels A or B and labeled the bottom panels as A and B.
Doing it all at one patchwork level:
figA + inset_element(figA_inset, ignore_tag=T) + figB + inset_element(figB_inset, ignore_tag=T) + panelC + panelD + plot_annotation(tag_levels = 'A')fixed the issue. (I initially tried iamakhilverma's workaround, which fixed the main plot beautifully, but created spaces in my insets where the empty labels should have gone and changed aspect ratios.)
Hi there,
My project team and I have found this package much more useful and intuitive than
cowplot, so thank you!We've been using
patchworkto combine multiple plots into one figure. Our largest figure is a 3x3 grid where each plot is a combined 2x1 plot, so there's actually a total of 18ggplotobjects.We were hoping to use the
plot_layout(tag_level = 'new')feature to skip labeling our subplots, but the skipped subplots also skip the associated label letters. Here is a simplified example:Created on 2020-01-17 by the reprex package (v0.3.0)
We've instead used
ggplot2'slabs(title = )feature, like in the modified example below, to manually create labels for our nine plots, but were hoping for a simpler solution throughpatchwork.Created on 2020-01-17 by the reprex package (v0.3.0)
