Waveshare board definitions for ESP Board Manager

English | 简体中文

📚 Documentation · 🚀 Quick start

---

This board pack describes Waveshare hardware using Board Manager YAML files and board-specific setup code. It follows the component-pack workflow in demo_boards, with Waveshare definitions, bilingual documentation, and generation/build checks.

📋 Board catalog

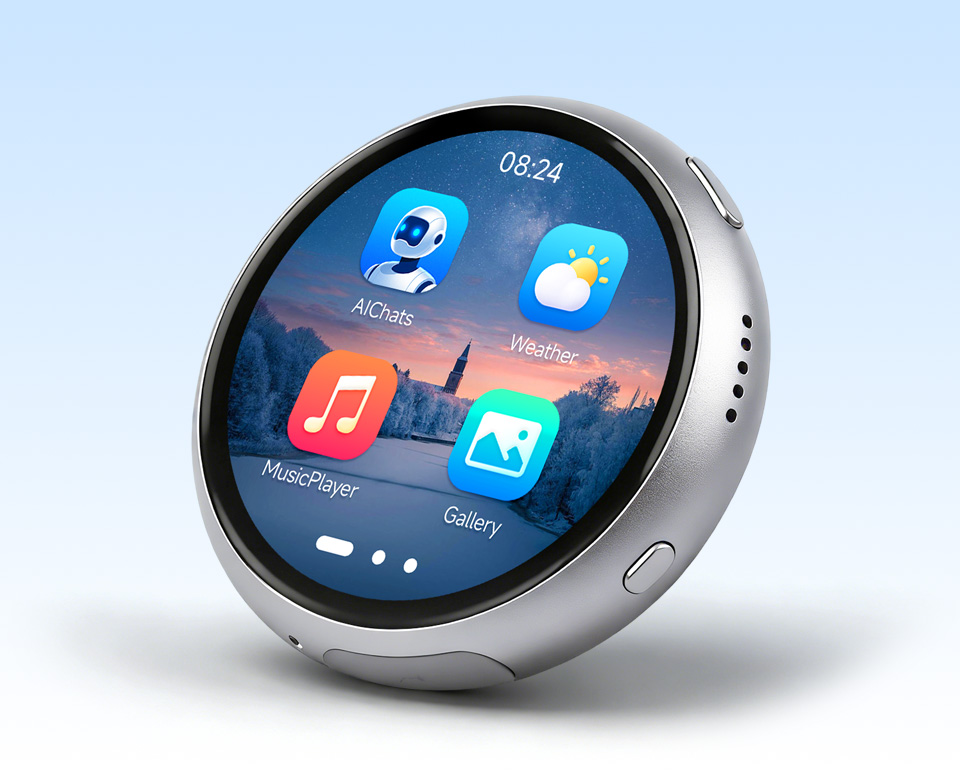

	ESP32-S3-Touch-AMOLED-1.75C Board definition · Product documentation

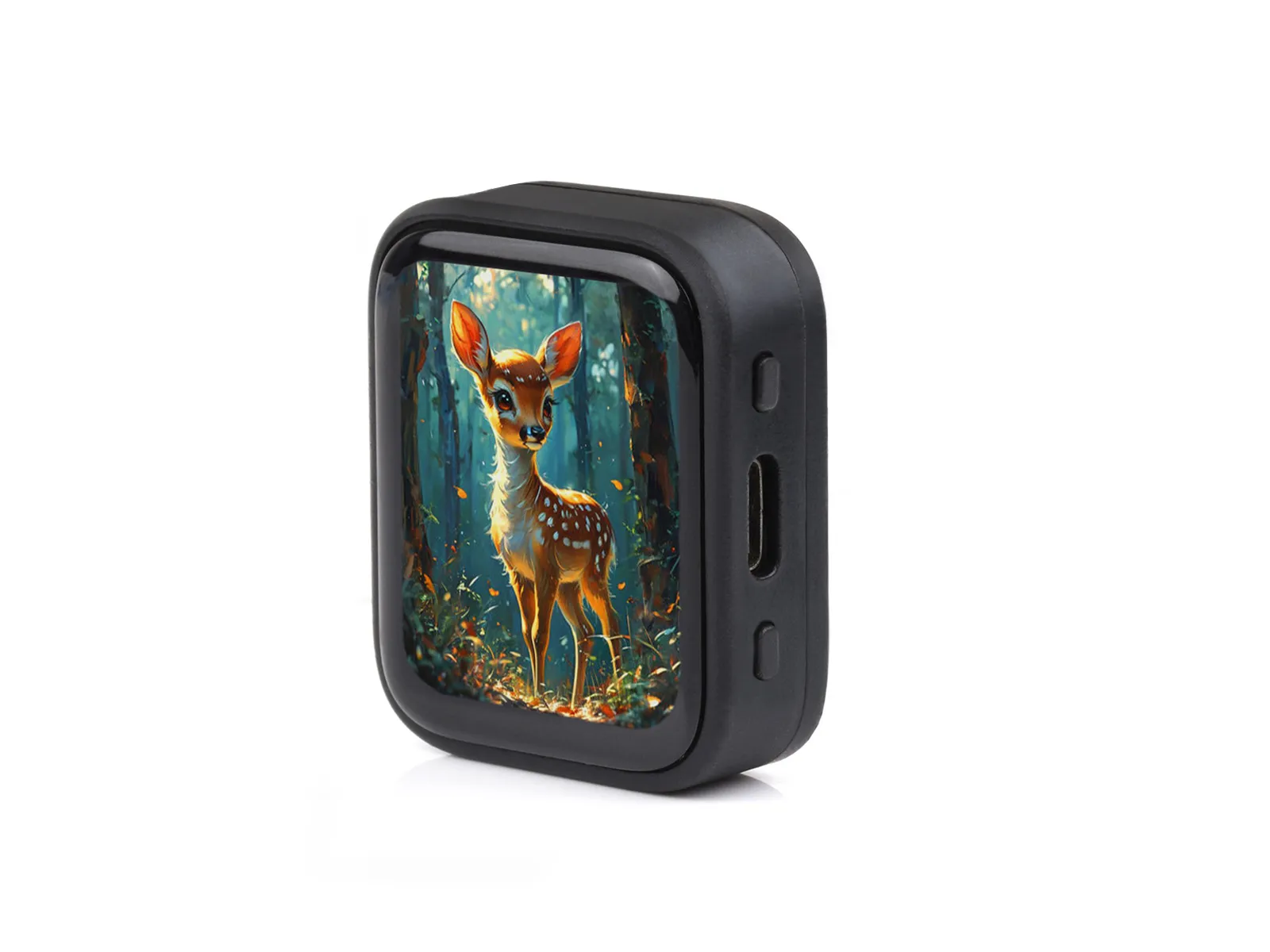

	ESP32-S3-Touch-AMOLED-1.8 Board definition · Product documentation

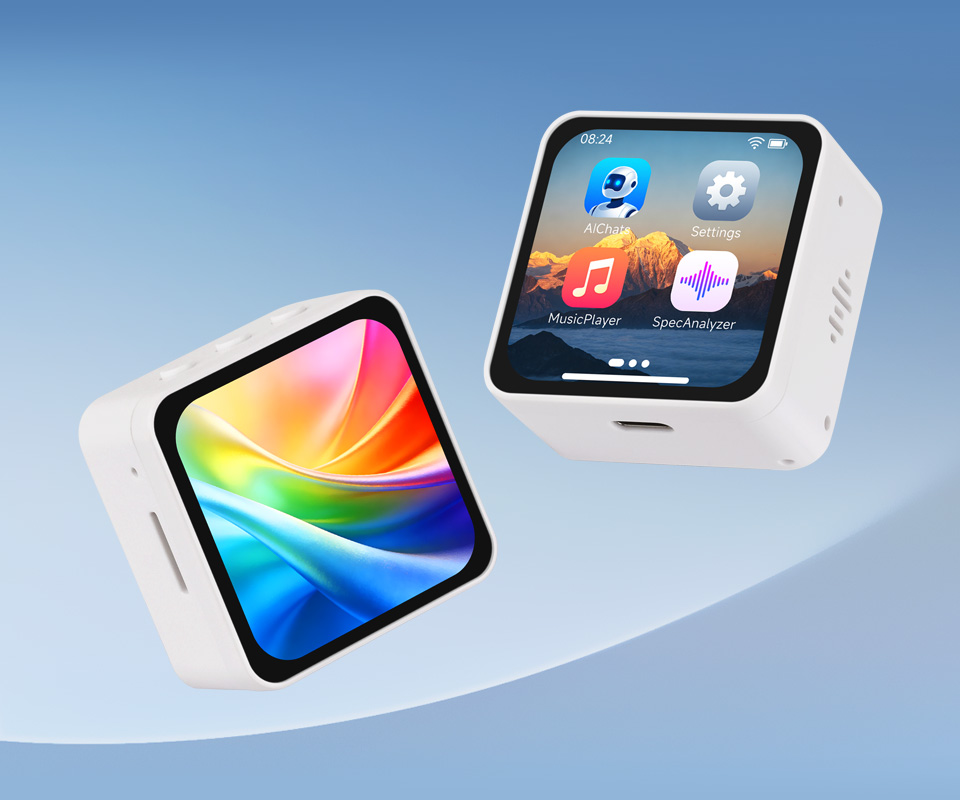

	ESP32-S3-Touch-AMOLED-2.16 Board definition · Product documentation

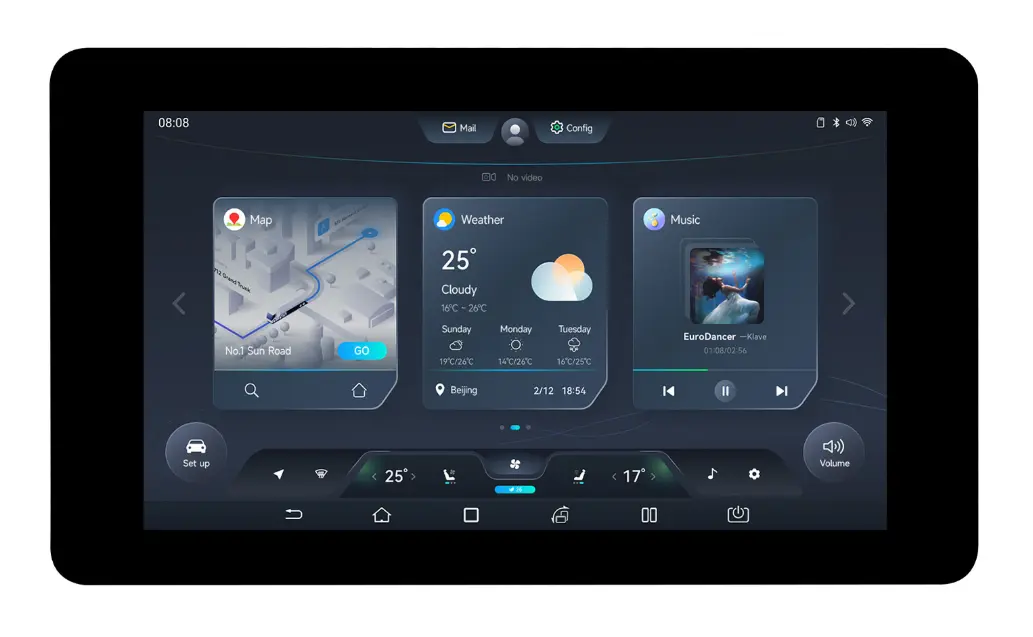

	ESP32-S3-Touch-LCD-7 Board definition · Product documentation

Device and peripheral definitions

The table lists definitions present in this repository. Peripheral declarations such as spi_sd describe a bus; they do not imply a complete storage application.

Board	Chip	Device definitions	Peripheral definitions
esp32_s3_touch_amoled_1_75c	ESP32-S3	axp2101_power_manager, audio_dac, audio_adc, display_lcd, lcd_touch	i2c_master, i2s_audio_out, i2s_audio_in, gpio_pa_control, spi_display
esp32_s3_touch_amoled_1_8	ESP32-S3	gpio_expander, axp2101_power_manager, audio_dac, audio_adc, display_lcd, lcd_touch, fs_sdcard	i2c_master, i2s_audio_out, i2s_audio_in, gpio_pa_control, spi_display
esp32_s3_touch_amoled_2_16	ESP32-S3	axp2101_power_manager, audio_dac, audio_adc, display_lcd, lcd_touch, fs_sdcard	i2c_master, i2s_audio_out, i2s_audio_in, gpio_pa_control, spi_display
esp32_s3_touch_lcd_7	ESP32-S3	display_lcd, lcd_touch	i2c_master, uart_rs485, uart_external, adc_sensor, spi_sd

Definitions live under boards/<full_model>/. The three AMOLED profiles come from Espressif Brookesia; see board revisions and migration notes. CI validates generation and compilation; physical operation requires board testing.

🚀 Quick start

Activate ESP-IDF first. For a local checkout, clone this pack into an existing ESP-IDF application's component directory:

mkdir -p components
git clone https://github.com/waveshareteam/waveshare_boards.git components/waveshare_boards
python -m pip install esp-bmgr-assist==0.8.3
idf.py set-target esp32s3
idf.py bmgr -l
idf.py bmgr -b esp32_s3_touch_lcd_7
idf.py build

Use the Component Manager version from the active IDF environment; the tested versions for each IDF line are listed in the CI guide.

set-target resolves the pack dependencies before discovery. In an already configured ESP32-S3 application, use idf.py reconfigure instead to preserve its configuration.

Keep the local directory name waveshare_boards: ESP-IDF uses the directory name as the component name. The pack declares espressif/esp_board_manager as a public dependency. Applications can include esp_board_manager.h and initialize the selected board using esp_board_manager_init().

Published versions can be installed from the registry:

idf.py add-dependency "waveshare/waveshare_boards"
idf.py reconfigure
idf.py bmgr -l

Find available versions in the Component Registry.

🗂️ Repository layout

boards/<full_model>/   Board metadata, peripherals, devices, and setup code
include/               Framework-independent AMOLED brightness helper
idf_component.yml      Component metadata and managed dependencies
CMakeLists.txt         Board-pack component registration
ci/test_app/           Board Manager integration compile test
ci/scripts/            Discovery, change routing, and validation tests
ci/versions.json       Exact ESP-IDF and Python tooling versions
scripts/               Generated board catalog maintenance
docs/                  Board revisions, CI, and registry publication guides
.github/               Workflows and contribution templates

The integration test is maintained under ci/; this repository currently has no first-party application examples, Arduino sketches, or delivery firmware.

🛠️ Maintenance

python scripts/update_supported_boards_table.py
python ci/scripts/board_pack.py check
python -m unittest discover -s ci/scripts -p 'test_*.py' -v

Use one boards/ container and keep the chip prefix in each model name. Do not add another chip/category directory: the layout must fit Board Manager scanning from an application's components/ root. Each model directory must match its unique board value. The catalog is regenerated from the definitions.

📚 Documentation

• Board organization, hardware revisions, and migration
• AMOLED brightness control
• CI coverage and local validation
• Registry credentials and publication
• Contributing
• Support
• ESP Board Manager documentation

📄 License

Apache License 2.0, with imported files retaining their original SPDX notices, including CC0-1.0. See source attribution.
